What’s the difference between a fibre optic leased line & FTTP?

Posted on 29 April 2019 by Beaming Support

The benefits of fibre are well recognised now, and as companies get bigger they are investing at a greater rate in faster and more reliable technologies. However it is not often clear what the different options often labelled as fibre actually mean, in this post we explain the differences between Fibre To The Premises and a dedicated fibre optic leased line.

 What is FTTP?

Fibre To The Premises (FTTP) is a kind of internet connection designed for consumer and small business use.  It’s called Fibre to the Premises because it sends data from the exchange to the user’s premises entirely over fibre optic cabling, using existing broadband infrastructure  (unlike an FTTC connection, where data travels part of its journey over copper wire).

When a user sends data out to the internet, it travels through fibre cable to a node (usually nearby at the end of the road). From there, data enters the shared broadband infrastructure and travels on towards the public internet. This means users share bandwidth, which makes FTTP a contended service. Connection speeds are likely to slow at peak times and can become unreliable. As more users take up the FTTP service, this will only become more evident.

 What is a Leased Line?

A leased line, also called a fibre leased line, is a dedicated fibre optic service provided directly to the premises. Unlike FTTP, a leased line connects directly to the public internet over a dedicated fibre optic cable; there’s no sharing of infrastructure as there is with FTTP.

The diagrams below show that whilst both technologies connect premises to the internet via fibre optic cable, the journey in which the data takes is very different.

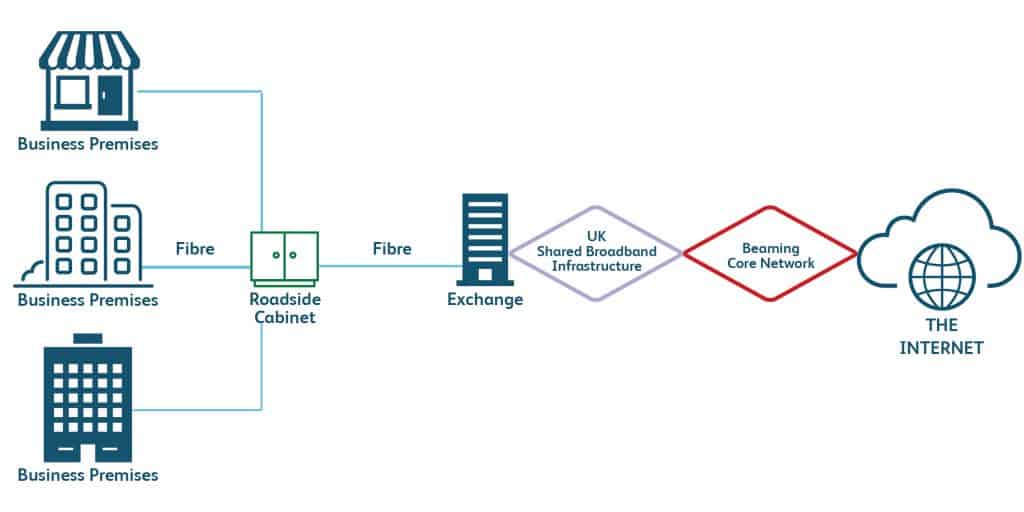

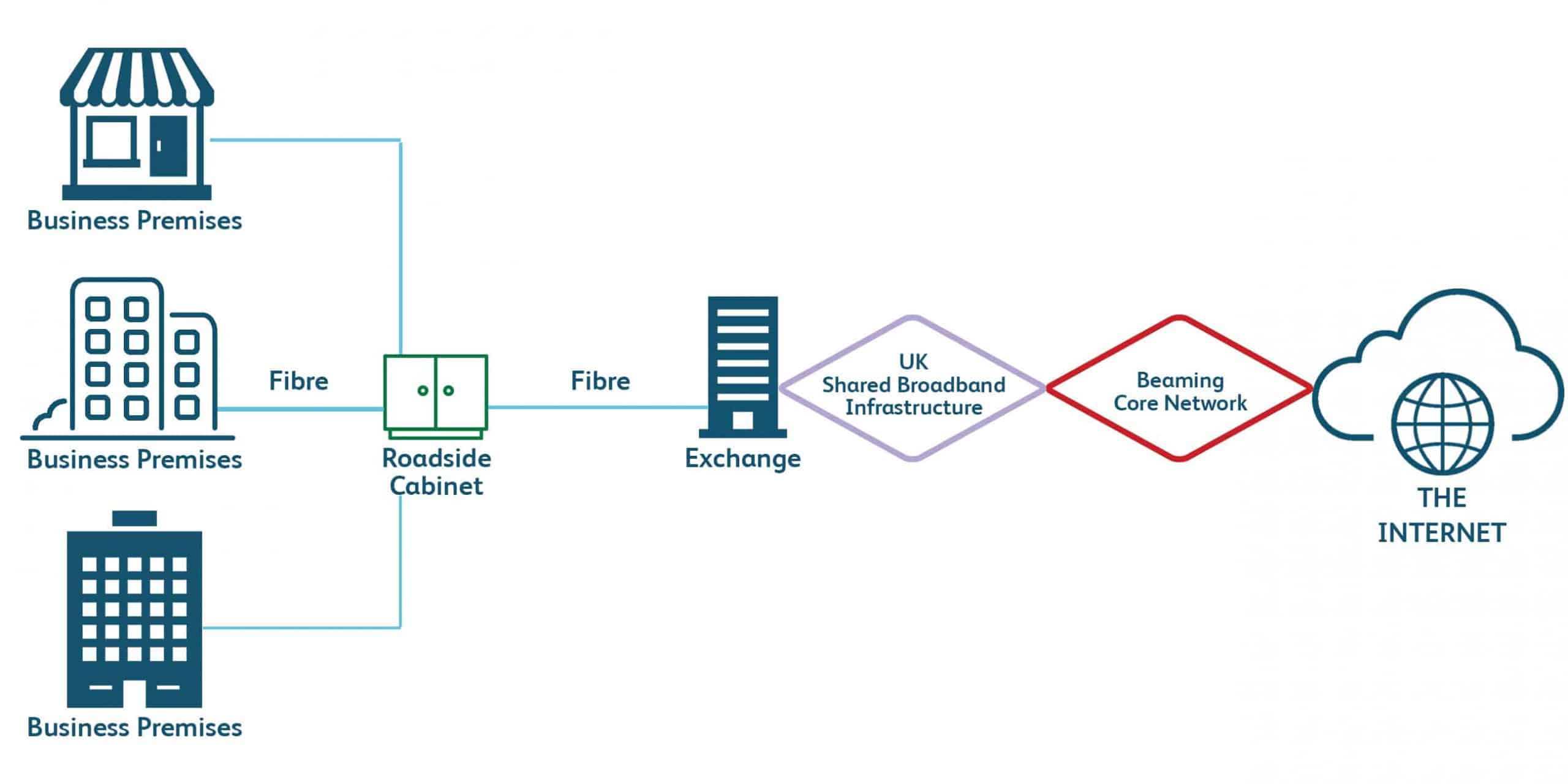

FTTP

How does FTTP work?

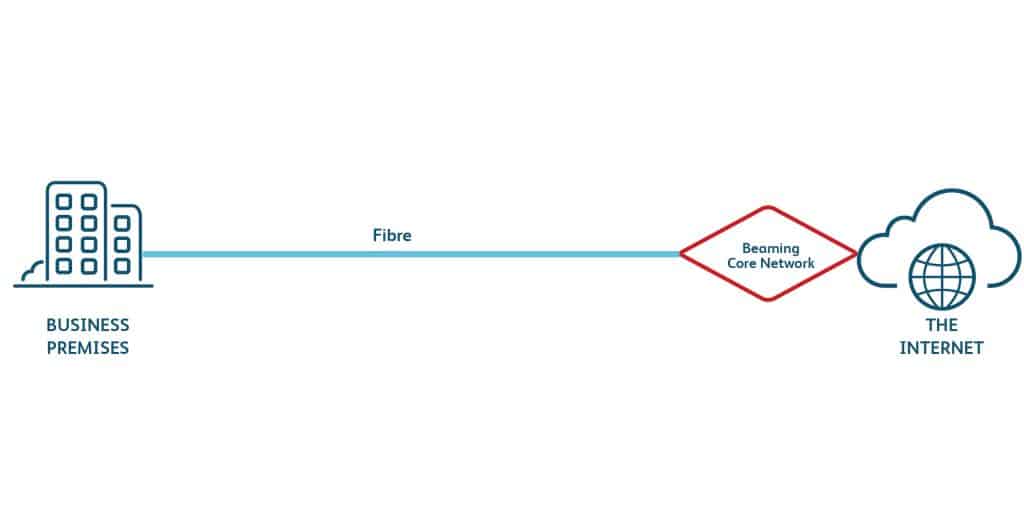

Fibre Optic Leased Line

How does a leased line work?

Speeds

Currently the highest download speeds available for an FTTP service range from between 300Mbps and 1Gbps depending on where you are situated.  Speeds are asymmetric, so the download speeds achievable will be significantly faster than upload speeds.

Leased lines can offer speeds to suit your requirements up to 10Gbps, with symmetrical download and upload speeds.  Speeds could be easily scalable if you opt for a larger bearer than the actual connection speed, meaning the fibre over which your data travels is capable of higher speeds than it is initially set up to provide.  This allows for a cheaper initial rental with capacity to upgrade to a faster connection in the future. For example, you could choose a 1Gbps bearer with a connection speed of 100Mbps.

 Service Levels

Not being specifically designed for critical business use service level agreements for FTTP aim for faults to be fixed within two working days. However, using an ISP focussed on connectivity for business should still give you the advantage of specialist support as well as additional security, high redundancy and the use of more advanced technology.

Service levels for leased lines provide quicker diagnostic and repair times in the case of any fault. Usually within 5 hours.

What should they be used for?

FTTP is best suited to residential use or to small businesses that need reasonably speedy connectivity but don’t transfer large amounts of data nor rely on 24 x 365 connectivity.

A leased line is suited to business use by those that use cloud applications and/or VoIP, transfer a lot of large files, or need a connection with 365 days a year up time.

The table below sums up the differences between FTTP and leased line technologies:

FTTP Leased line
Maximum possible speed 1Gbps in some locations 10Gbps
Standard fault repair time Up to 2 working days Within 5 hours
Symmetric upload & download speeds? No Yes
Shared infrastructure? Yes No
Connection Performance Variable latency, no performance  guarantees, variable contended speeds Guaranteed consistent performance and dedicated uncontended bandwidth
Best suited to Residential use and small/home businesses that want a speedy connection but aren’t reliant on their connection’s stability or availability. Medium to large businesses that use cloud applications/VoIP/transfer large amounts of data. Businesses that need 24/7, 365 reliability.
